Name: EnergySaving P391 Outdoor LED Display Modules for Video Advertising High Quality LED Panel Brand
Brand: CONWIN
Price: 1 USD

Home > Passive Components >

Energy-Saving P3.91 Outdoor LED Display Modules for Video Advertising High Quality LED Panel Brand

Categories	Outdoor Advertising LED Display
Brand Name:	CONWIN
Model Number:	T-3.91
Certification:	CE,ROHS
Place of Origin:	China
MOQ:	1
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000sqm/month
Delivery Time:	5-8 working days
Packaging Details:	wooden box or carton
Pixel Pitch:	3.91mm
Cabinet size:	1000mm x 1000mm
Module Size:	500mm x 250mm
Cabinet Weight:	22.5Kg
Pixel Density:	225792dot/m²
Scanning Mode:	1/16 Scan
Operating Environment:	outdoor：-30℃-50℃；humidity:10%-90%RH
Average Power Consumption:	420w
IP Class:	IP65
Using Site:	Outdoor Use

Contact Now

Add to Cart

Company Info.

Conwin Optoelectronic Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Energy-Saving P3.91 Outdoor LED Display Modules for Video Advertising High Quality LED Panel Brand

Energy-Saving P3.91 Outdoor LED Display Modules for Video Advertising High Quality LED Panel Brand

Product Features:

1.Super slim and light

2.High brightness and energy saving

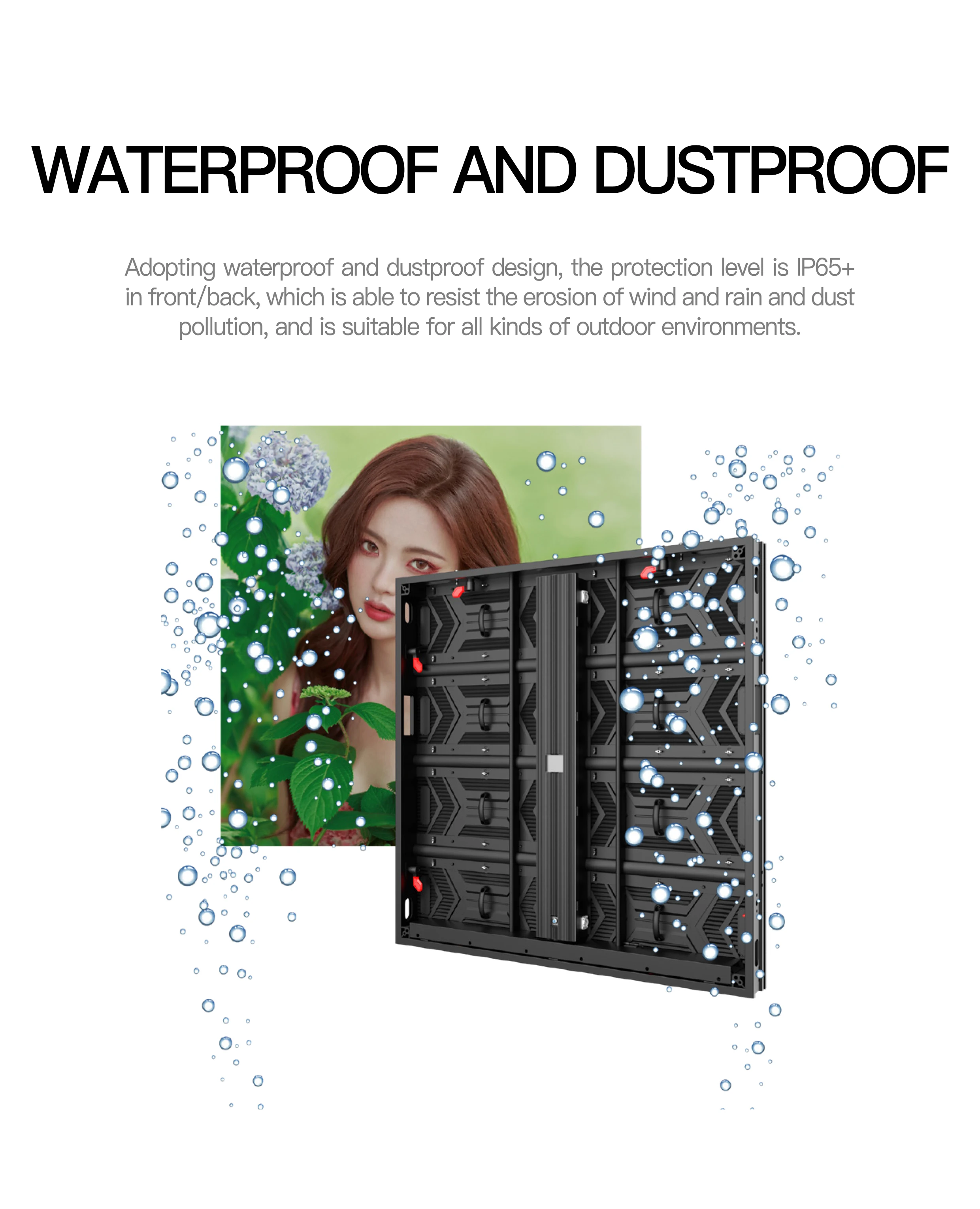

3.IP65 waterproof for both front and back side

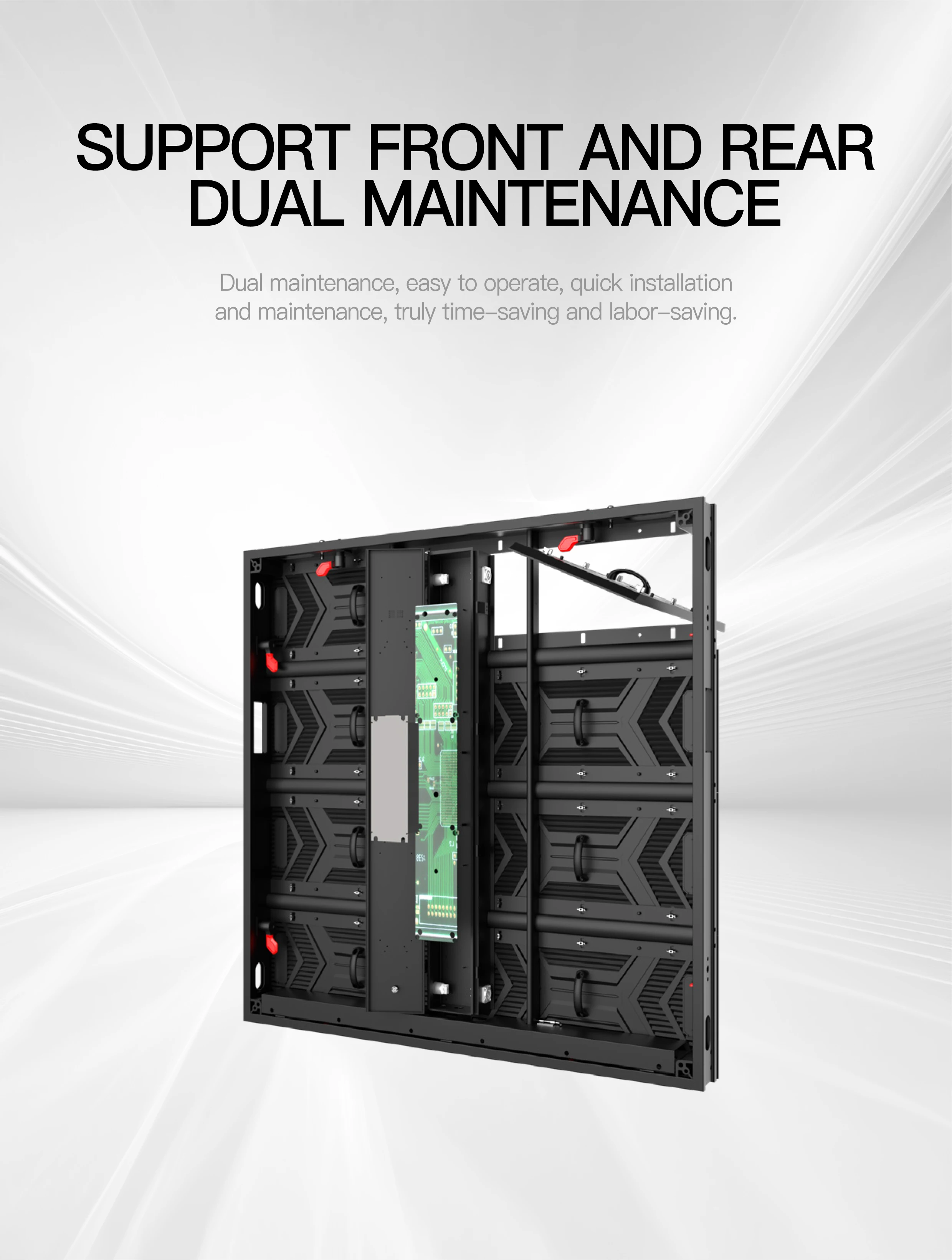

4.Hard connection supports full front maintenance

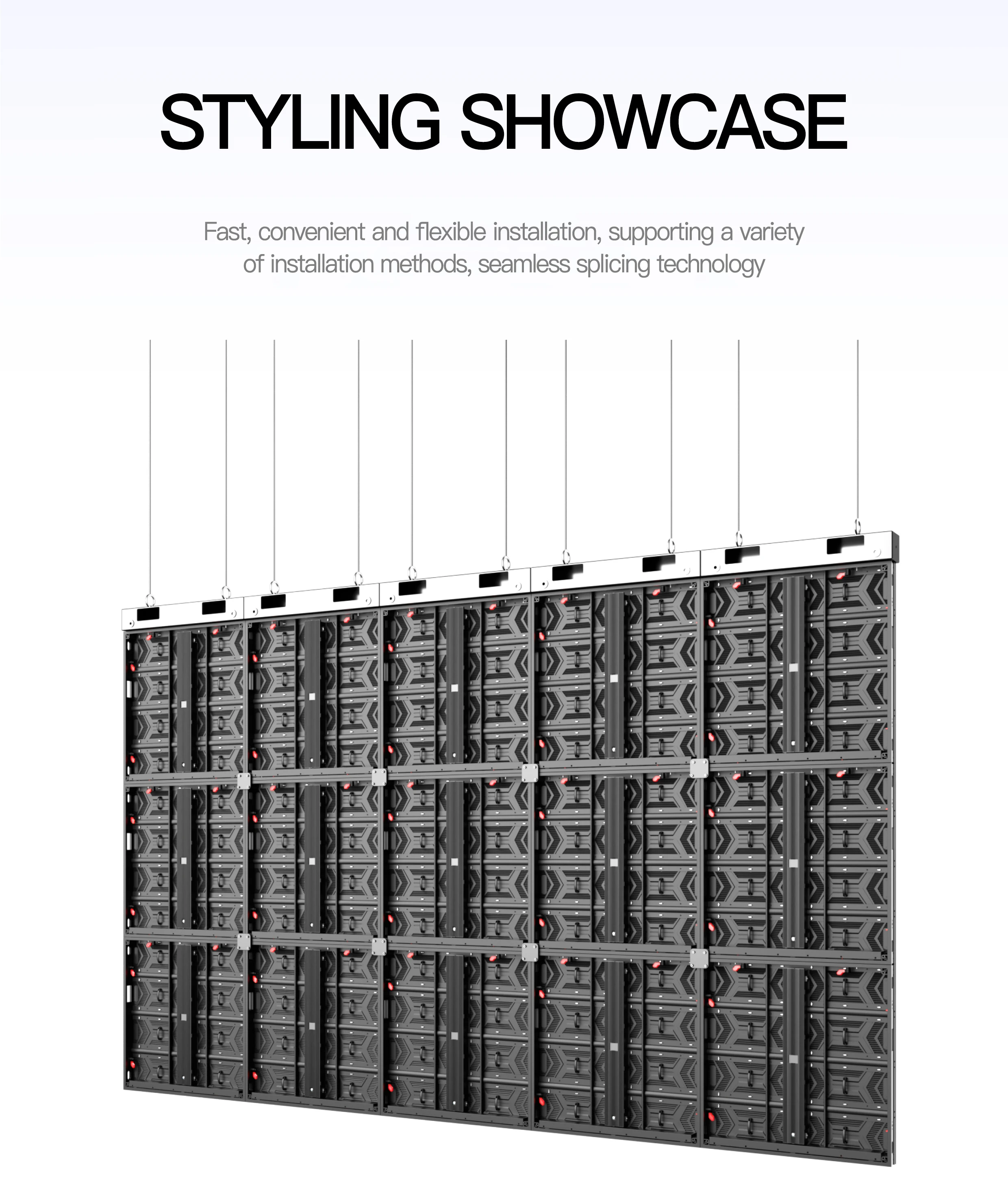

5.Fast installation,Stainless fast lock High precision aluminum alloy panelQuick assembly . Good flatness

6.160° super wide viewing angle, perfect presentation of images from any angle

Products Description

PRODUCT MODEL	P2.97	P3.91	P4.81	P6.25	P7.81	P10.42
PIXEL PITCH	2.97mm	3.91mm	4.81mm	6.25mm	7.81mm	10.42mm
PIXEL COMPOSITION	SMD1415	SMD1921	SMD1921	SMD2727	SMD2727	SMD2727
PIXEL DENSITY	225792dot/m²	65536dot/m²	43264dot/m²	25600dot/m²	16384dot/m²	9216dot/m²
PIXEL DENSITY	500*250mm	500*250mm	500*250mm	500*250mm	500*250mm	500*250mm
MODULE SIZE	168*84 dot	128*64 dot	104*52 dot	80*40 dot	64*32 dot	48*24dot
CABINET SIZE	1000100075	1000100075	1000100075	1000100075	1000100075	1000100075
CABINET RESOLUTION	336*336dot	256*256dot	208*208dot	160*160dot	128*128dot	96*96dot
CABINET WEIGHT	≤25kg	≤25kg	≤25kg	≤25kg	≤25kg	≤25kg
(FRONT/REAR) WATERPROOF RATING	IP65	IP65	IP65	IP65	IP65	IP65
LUMINANCE	>4500 CD/m²	>4500 CD/m²	>4500 CD/m²	>6000 CD/m²	>6000 CD/m²	>6000 CD/m²
SCANNING METHOD	1/21S	1/16S	1/13S	1/5S	1/4S	1/2S
REFRESH RATE	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ
VEWING ANGLE(H/V)	140/140°	140/140°	140/140°	140°/140°	140/140°	140/140°
VIEWING DISTANCE	>3m	>4m	>5m	>7m	>10m	>12m
GRAYSCALELEVEL	14bit	14bit	14bit	14bit	14bit	14bit
COLOR TYPE	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M
BRIGHTNESS ADJUSTMENT	0-100 levels adjustable
MAXIMUM POWER	700W/m²	700W/m²	700W/m²	700W/m²	750W/m²	750W/m²
AVERAGE POWER	280W/m²	280W/m²	280W/m²	280W/m²	300W/m²	300W/m²
OPERATING ENVIRONMENT OUTDOOR		OUTDOOR	OUTDOOR	OUTDOOR	OUTDOOR	OUTDOOR
INPUT POWER	AC100~24050/60HZ
OPERATING TEMPERATU	RE-20℃~+50℃	-20℃~+50℃	-20℃~+50℃	-20℃~+50℃	-20℃~+50℃	-20℃~+50℃
OPERATING HUMIDITY	10~95%RH	10~95%RH	10~95%RH	10~95%RH	10~95%RH	10~95%RH
WORKING LIFE	100,000hours	100,000hours	100,000hours	100,000hours	100,000hours	100,000hours

Details Images
