| Categories | Vibration Testing Equipment |
|---|---|
| Brand Name: | HBYIQI |
| Model Number: | B-E04-Z-500 |
| Certification: | ISO-9001 |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Delivery Time: | 15 Days |
| Packaging Details: | Internatinal Standard Package |
| Power Supply: | 220/50±5% |
| Product Bearing: | 50KG |
| Table Size: | W500×D500 |
| Exciting Vibration: | Electromagnetic Mode |
| Company Info. |
| Guangdong Hengbang Testing Equipment Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Vibration Impact Testing Machine
Brand: HBYIQI
Appliance: The main function of this equipment is to test the reliable performance of the vibration of the product under physical conditions. After the test, through the verification to determine whether the performance of the product meets the requirements, you can better to improve the design, verification and inspection of the product. It could be used in the following industry:
Technical Parameter:
| Model | B-E04-Z-500 | B-E04-Z-750 | B-E04-Z-1000 | Customization Acceptable |
| 5～500 | Negotiable | ||
| Product Bearing(Kg) | 50 | 50 | 100 | Negotiable |
| Accuracy | 1 Hz | Negotiable | ||
| Maximum Acceleration | 20g(Note: changes with frequency, not constant) | Negotiable | ||
| Control Mode | Industrial Touch Screen | Negotiable | ||
| Amplitude(mm) | 0-5mm(Note: changes with frequency, not constant) | Negotiable | ||
| Exciting Vibration | Electromagnetic Mode | Negotiable | ||
| Electronic Amplitude Modulation | Negotiable | ||
| Vibration Direction (optional) | Z | X+Z | X+Z+Y | Negotiable |
| Sine Wave | |||
| Test Mode | Fixed frequency, Sweep frequency, Program, Logarithm | |||
| Time Range | 0-9999H/M/S Setting freely | |||
| Cycles | 0-9999 Setting freely | |||
| Table Size(mm) | W500×D500 | W750×D750 | W1000×D1000 | Negotiable |
| Supply Power(V/Hz) | 220/50±5% | |||
| Power Consumption(KVA) | 5.5 | 7.5 | 9.5 | / |
| Cooling Type | Air Cooling | |||
| Optional Accessories | PC monitoring software, computers and printers, customized tooling | |||
| Standard Configuration | ||||

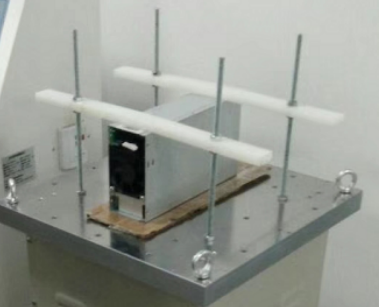

| Test Fixtures | 4 special rings, 2 telescopic straps (fixture can be customized according to customer requirements) | |||
| Tools | Comes with a set of tools | |||
| Documents | Testing machine manual, factory verification certificate, warranty certificate | |||
Detail Show:
1.Test System
2.shock absorbers
3.Case
|
